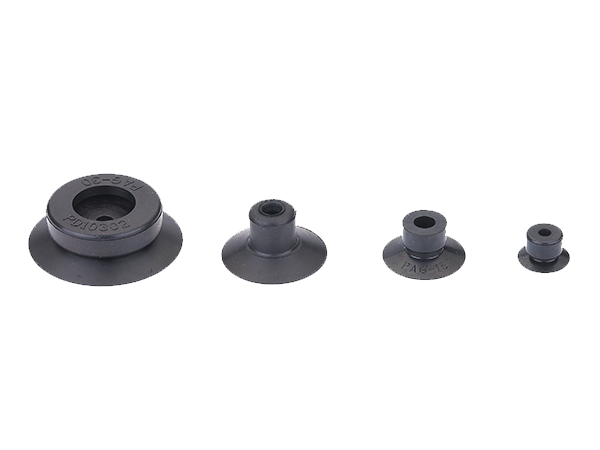

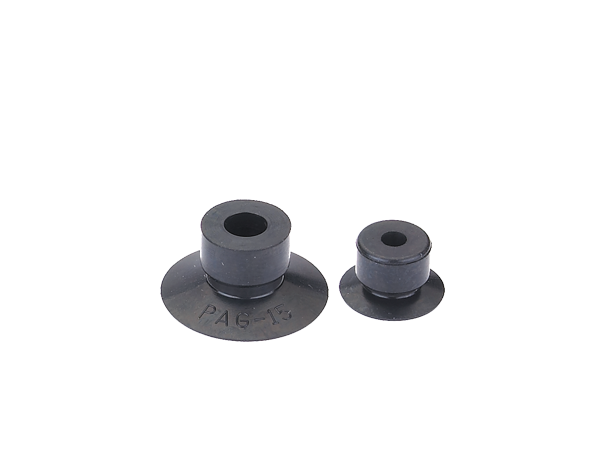

Features
◇ Thin lip and short stroke, suitable for handling thin and smooth workpiece.
◇ Suction cups with different materials are suitable for different workpieces.
◇ Various sizes, suitable for workpiece with different sizes.
Applications
◇ Paper
◇ Plastic film
◇ Aluminum foil, copper foil
| How to order | ||||
| SPA 15 A N - M5M ① ② ③ ④ ⑤ | ||||
| ① Series | ② Diameter | ③ Stroke | ④ Material & Hardness | ⑤ Connection thread |
| SPA | 10 -φ10mm 15 -φ15mm 20 -φ20mm 25 -φ25mm 30 -φ30mm 40 -φ40mm 50 -φ50mm | A - High stroke B -Low stroke X- Ultralow stroke | N - NBR WS - White silicone CN - Cuductive NBR CS - Conductive silicone | Nil - Suction cup alone， no connection thread M5M - M5Male thread M8M - M8Male thread M6M - M6Male thread |
| Selection | ||||||||
| Model | A(Nil） | A(M5M） | A(M6M） | A(M8M） | B(Nil） | B(M5M） | X(Nil） | X(M5M） |
| SPA10 | ● | ● | - | - | ● | ● | - | - |
| SPA15 | ● | ● | - | - | ● | ● | ● | ● |
| SPA20 | ● | ● | - | - | ● | ● | - | - |
| SPA25 | - | - | ● | ○ | - | - | - | - |
| SPA30 | - | - | ● | ○ | ● | ● | - | - |
| SPA40 | - | - | ● | ○ | - | - | - | - |
| SPA50 | - | - | ● | ○ | - | - | - | - |
◇Note: "●"- standard, in stock. "○"-selective,no stock."—"-unavailable.
| Technical parameters | |||
| Model | Pull-out force (N) | Inner volume (cm3) | Recommended hose dia.(mm) |
| SPA10A | 3.5 | <0.1 | 4.0 |
| SPA10B | 3.5 | <0.1 | 4.0 |
| SPA15A | 8.0 | <0.1 | 4.0 |
| SPA15B | 8.0 | <0.1 | 4.0 |
| SPA15X | 8.0 | <0.1 | 4.0 |
| SPA20A | 15.0 | 0.3 | 4.0 |
| SPA20B | 15.0 | <0.1 | 4.0 |
| SPA25A | 22.0 | 0.6 | 4.0 |
| SPA30A | 32.0 | 1.1 | 4.0 |
| SPA30B | 32.0 | 0.2 | 4.0 |
| SPA40A | 56.0 | 2.6 | 6.0 |
| SPA50A | 88.0 | 5.8 | 6.0 |
◇ Note: Testing vacuum level -60kPa. Workpiece with smooth and clean surface. The data of pull-out force as above are
figured out without considering safety factor. The data may be different according to different workpiece surfaces.

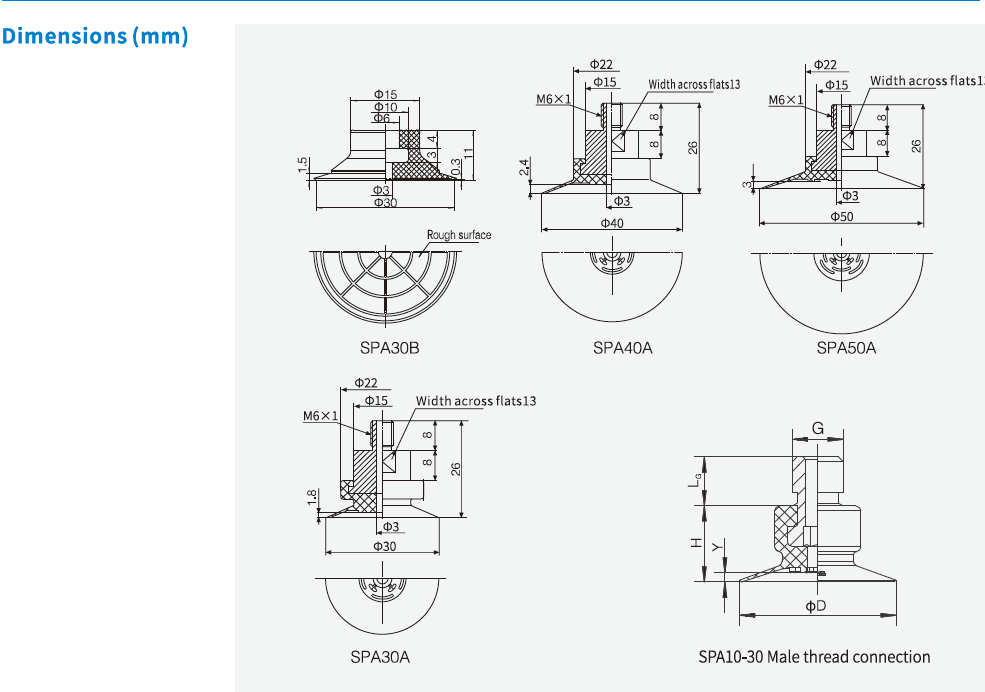

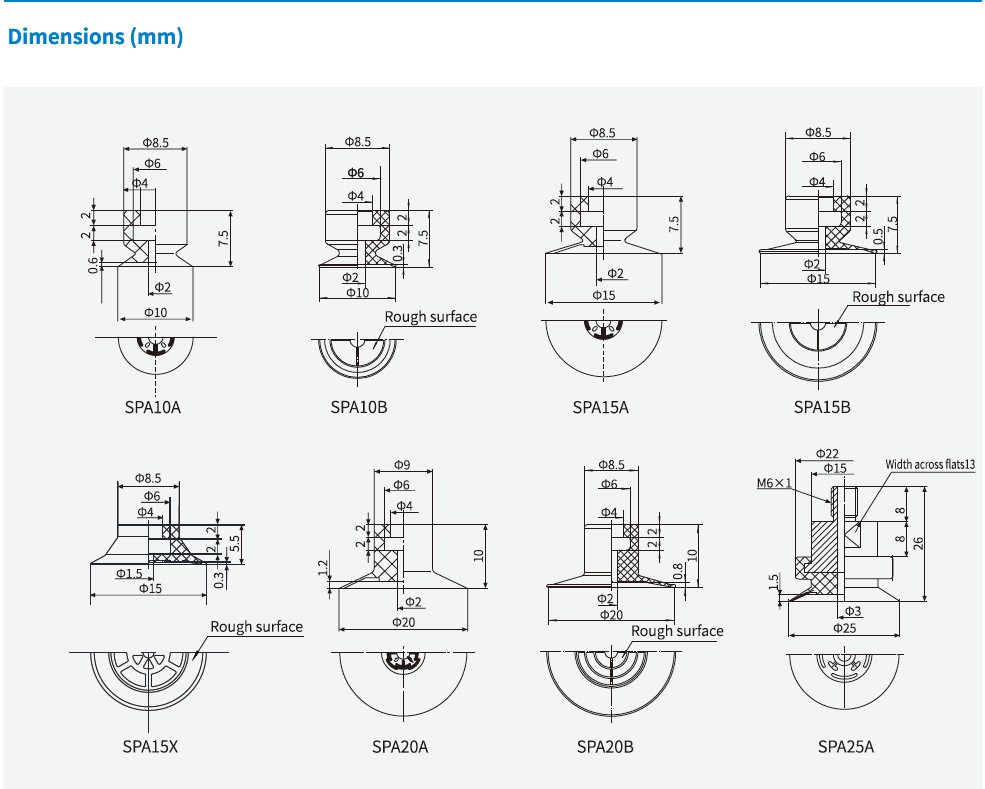

| Model/Size | D | H | Y | G | LG |
| SPA10A-M5M | 10 | 7.5 | 0.3 | M5 | 5 |
| SPA10B-M5M | 15 | 7.5 | 0.9 | M5 | 5 |
| SPA15A-M5M | 15 | 7.5 | 0.5 | M5 | 5 |
| SPA15B-M5M | 15 | 5.5 | 0.3 | M5 | 5 |
| SPA15X-M5M | 20 | 10 | 1.2 | M5 | 5 |
| SPA20A-M5M | 20 | 10 | 0.8 | M5 | 5 |
| SPA20B-M5M | 30 | 11 | 0.3 | M5 | 5 |
| SPA30B-M5M | 15 | 5.5 | 0.3 | M5 | 5 |
| Mounting parts | |||||
| Spare parts | Model | Vacuum pad | |||
| Fitting for suction cup | PJS-M5M-ST2 | SPA10A、10B SPA15A、15B、15X SPA20A、20B | |||
| PJS-M5M-ST3 | SPA30B | ||||
| PJS-M6M-ST7 | SPA25A、30A、40A、50A | ||||
